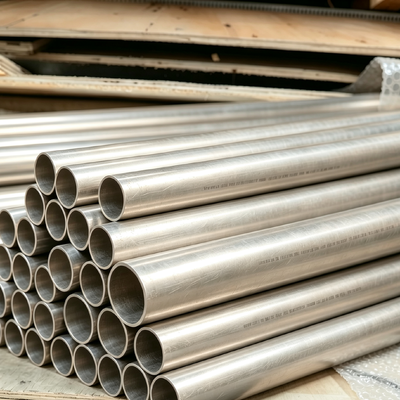

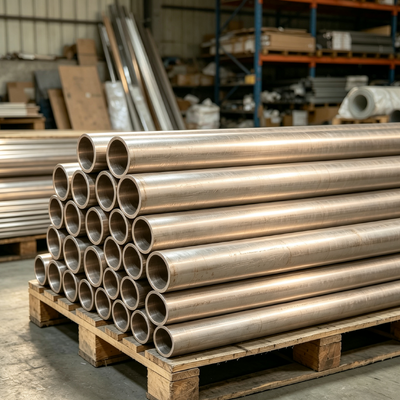

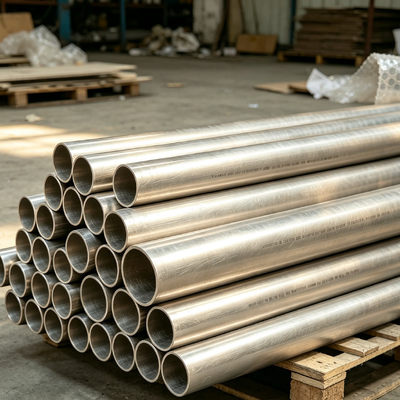

ASTM B466 Seamless Copper Nickel Pipe CuNi 70/30 for Heat Exchanger Applications

  • ASTM B466 Seamless Copper Nickel Pipe CuNi 70/30 for Heat Exchanger Applications
  • ASTM B466 Seamless Copper Nickel Pipe CuNi 70/30 for Heat Exchanger Applications
  • ASTM B466 Seamless Copper Nickel Pipe CuNi 70/30 for Heat Exchanger Applications
  • ASTM B466 Seamless Copper Nickel Pipe CuNi 70/30 for Heat Exchanger Applications
  • ASTM B466 Seamless Copper Nickel Pipe CuNi 70/30 for Heat Exchanger Applications
مكان المنشأ شنغهاي، الصين
اسم العلامة التجارية TOBO
إصدار الشهادات ISO/TUV/SGS
رقم الموديل أنابيب نحاس ونيكل
الحد الأدنى لكمية 1 قطعة
الأسعار قابل للتفاوض
تفاصيل التغليف حزمة الشحن القياسية
وقت التسليم 15-30 أيام العمل
شروط الدفع / تي تي، ويسترن يونيون
القدرة على العرض 10 طن / شهر
تفاصيل المنتج
المنتج nanme ASTM B466 CuNi 70/30 أنبوب مكثف مبادل حراري أنابيب سبائك النحاس والنيكل غير الملحومة خدمة تصنيع المعدات الأصلية وأوديإم
نوع المنتج C71500 سمك الجدار سمك قياسي ومخصص متاح
جودة درجة الشيء الحقيقي التطبيقات الهندسة البحرية، المبادلات الحرارية، محطات تحلية المياه، المعالجة الكيميائية
القطر الخارجي 6 ملم - 60 ملم طول أطوال قياسية 6 م أو 12 م، أطوال مخصصة متاحة
ضغط 300/600/900 معيار الدين
قوة العائد عالي نطاق درجة الحرارة -20 درجة مئوية إلى 300 درجة مئوية
المعالجة السطحية مصقول حسب طلب العميل الاستخدام نقل مياه الصرف الصحي والغاز النفطي
اسم المنتج أنابيب نحاس ونيكل كثافة حوالي 8.9 جم/سم3
إبراز

ASTM B466 CuNi 70/30 condenser tube

,

nickel copper alloy seamless pipe

,

heat exchanger copper nickel pipe
اترك رسالة
منتوج وصف

ASTM B466 CuNi 70/30 Condenser Tube Heat Exchanger Nickel Copper Alloy Seamless Pipe



1.Product Description

Copper-nickel pipe is a seamless or welded tubular product made from copper-nickel alloy, primarily composed of copper (Cu) and nickel (Ni), with minor additions of iron (Fe) and manganese (Mn) to enhance mechanical properties and corrosion resistance. The most common grades are 90/10 (CuNi 90/10, UNS C70600) and 70/30 (CuNi 70/30, UNS C71500). These pipes are manufactured according to international standards such as ASTM B466, B467, B111, and EN 12451, offering excellent dimensional accuracy, uniform wall thickness, and superior surface quality. They are available in a wide range of diameters and schedules to meet diverse engineering requirements.


2. Product Applications

Copper-nickel pipes are widely used in marine engineering, offshore oil and gas platforms, shipbuilding (hull piping, cooling water systems, fire protection systems), seawater desalination plants, power generation stations (condenser and heat exchanger tubes), chemical processing industries, and coastal infrastructure. They are the preferred material for conveying seawater, brine, and other corrosive fluids, as well as for high-temperature steam and hydraulic systems requiring reliable anti-fouling and biofouling resistance.



3. Product Advantages

  • Superior corrosion resistance – Exceptional resistance to seawater, brackish water, and chloride-induced pitting, stress corrosion cracking, and erosion-corrosion.

  • Excellent biofouling resistance – Naturally inhibits marine organism adhesion, reducing maintenance and cleaning frequency.

  • High strength and ductility – Good mechanical properties at both ambient and elevated temperatures, with easy bending, flanging, and welding.

  • Long service life – Proven track record of 30+ years in marine environments with minimal degradation.

  • Low magnetic permeability – Suitable for applications where non-magnetic materials are required.

  • Good thermal conductivity – Efficient heat transfer performance for heat exchanger applications.

  • Fabrication friendly – Compatible with standard welding, brazing, and soldering techniques; readily machinable.

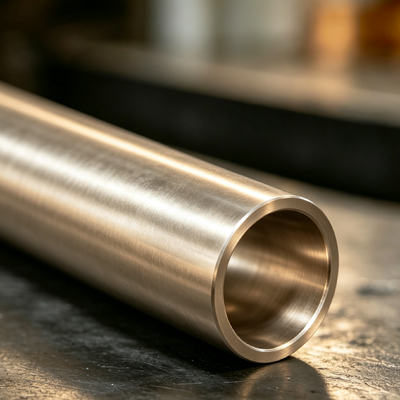

​ASTM B466 Seamless Copper Nickel Pipe CuNi 70/30 for Heat Exchanger Applications

4.Key Technical Parameters



Parameter 90/10 (C70600) 70/30 (C71500)
Chemical Composition Cu: 88.5–90.5%, Ni: 9.0–11.0%, Fe: 1.0–1.8%, Mn: ≤1.0% Cu: 68.5–70.5%, Ni: 29.0–31.0%, Fe: 0.4–1.0%, Mn: ≤1.0%
Density 8.94 g/cm³ 8.94 g/cm³
Melting Range 1,100–1,150°C 1,170–1,240°C
Tensile Strength (min) 290 MPa 485 MPa
Yield Strength (0.2% offset, min) 105 MPa 175 MPa
Elongation (min) 30% (in 50 mm) 30% (in 50 mm)
Hardness (Rockwell B) 65–80 HRB 75–90 HRB
Electrical Conductivity ~7% IACS ~4.5% IACS
Thermal Conductivity ~45 W/(m·K) at 20°C ~29 W/(m·K) at 20°C
Coefficient of Thermal Expansion ~16.2 × 10⁻⁶ /°C (20–300°C) ~15.8 × 10⁻⁶ /°C (20–300°C)
Operating Temperature Range –200°C to +300°C –200°C to +350°C
Standard Dimensions OD: 6.0–400.0 mm; Wall thickness: 0.5–30.0 mm; Length: up to 12 m (or as required)
Manufacturing Standards ASTM B466/B467/B111, EN 12451, JIS H3300, etc.
Product Forms Seamless or welded (straight or coiled)



FAQ

1. Are you trading company or manufacturer ? We are manufacturer ,You can see the certification.

2.How long is your delivery time? Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

3. Do you provide samples ? is it free or extra ? Yes, we could offer the sample for free charge but need pay the cost of freight.

4. What is your terms of payment ? Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
